In-Line Cartridge Filler – To 110 Per Minute

High Speed Automatic Cartridge Filling

High Speed automatic cartridge filling and closing systems for 10.5, 14 & 30 oz fiber or plastic cartridges. Featuring horizontal load and unload or optional vertical load and unload, volumetric product metering and cartridge lift mechanisms for a vertical, air-free bottom up fill.

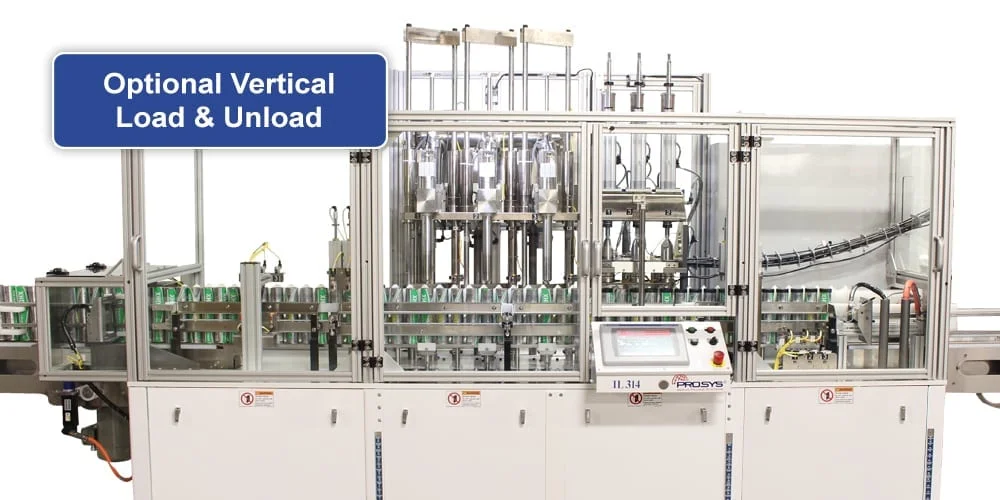

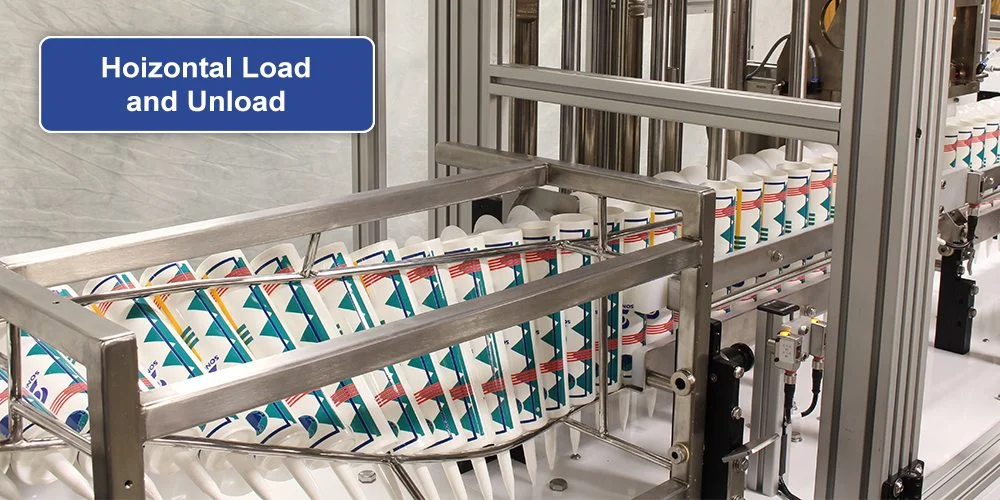

  • Horizontal Load & Unload (optional vertical load & unload)
  • 3 Head In-Line Cartridge Filling & Closing
  • 10oz. Plastic, Metal or Fiber Cartridges
  • 14oz. Plastic, Metal or Fiber Grease Cartridges
  • Vertical Bottom Up High Speed SERVO Filling
  • Standard Reject w/Optional Checkweighing
  • Plunger Insertion w/Air Release System
  • Standard Stainless Steel Product Contact Parts
  • Viscous Products up to 3 Million cps
  • +-0.1% by Volume
  • Service & On-Line Support via Ethernet
  • Positive Displacement Metering
    “Snuff-Back” Material Cutoff
  • Optional Explosion Proof Controls (Class 1 Division 1 & 2, ATEX 0 & 1)
  • Optional Color & Additive Mixing
  • Turnkey & Custom Designs
  • Pump or Press Fed
  • Vacuum Filling
  • Adhesives, Sealants & Greases
  • Turnkey & Custom Designs

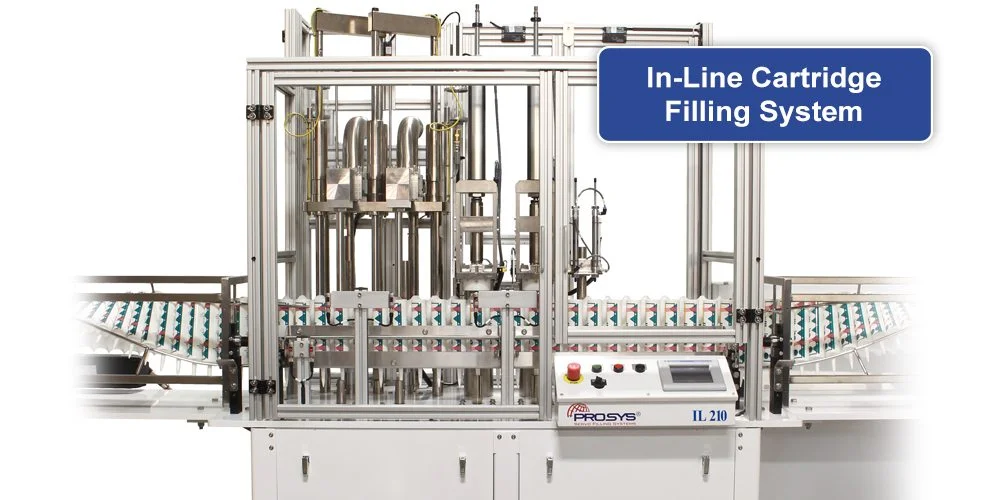

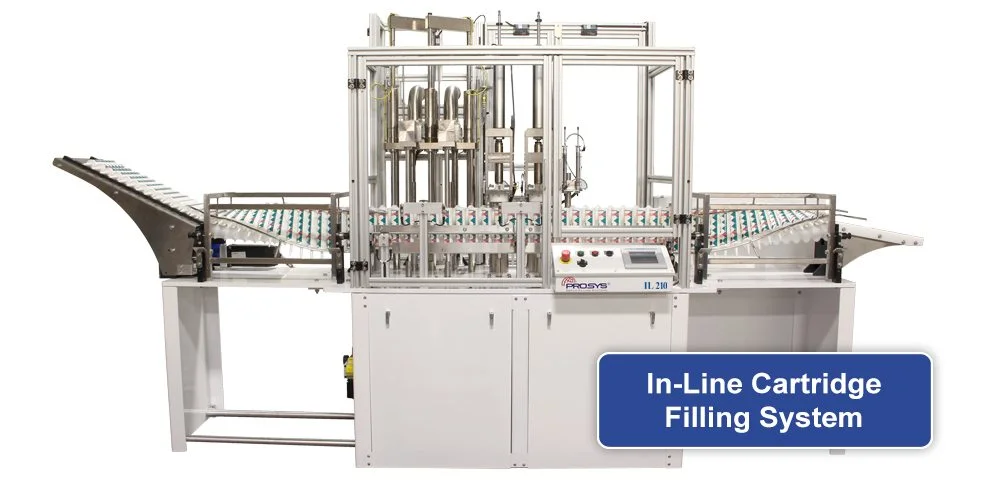

In-Line Cartridge Filler
