LB 30/60 Lip Balm Filler – to 60 Per Minute

Semi-Automatic hot melt filling line to fill, cool and cap lip balm sticks at a machine cycle rate of up to 30 or 60 PPM.

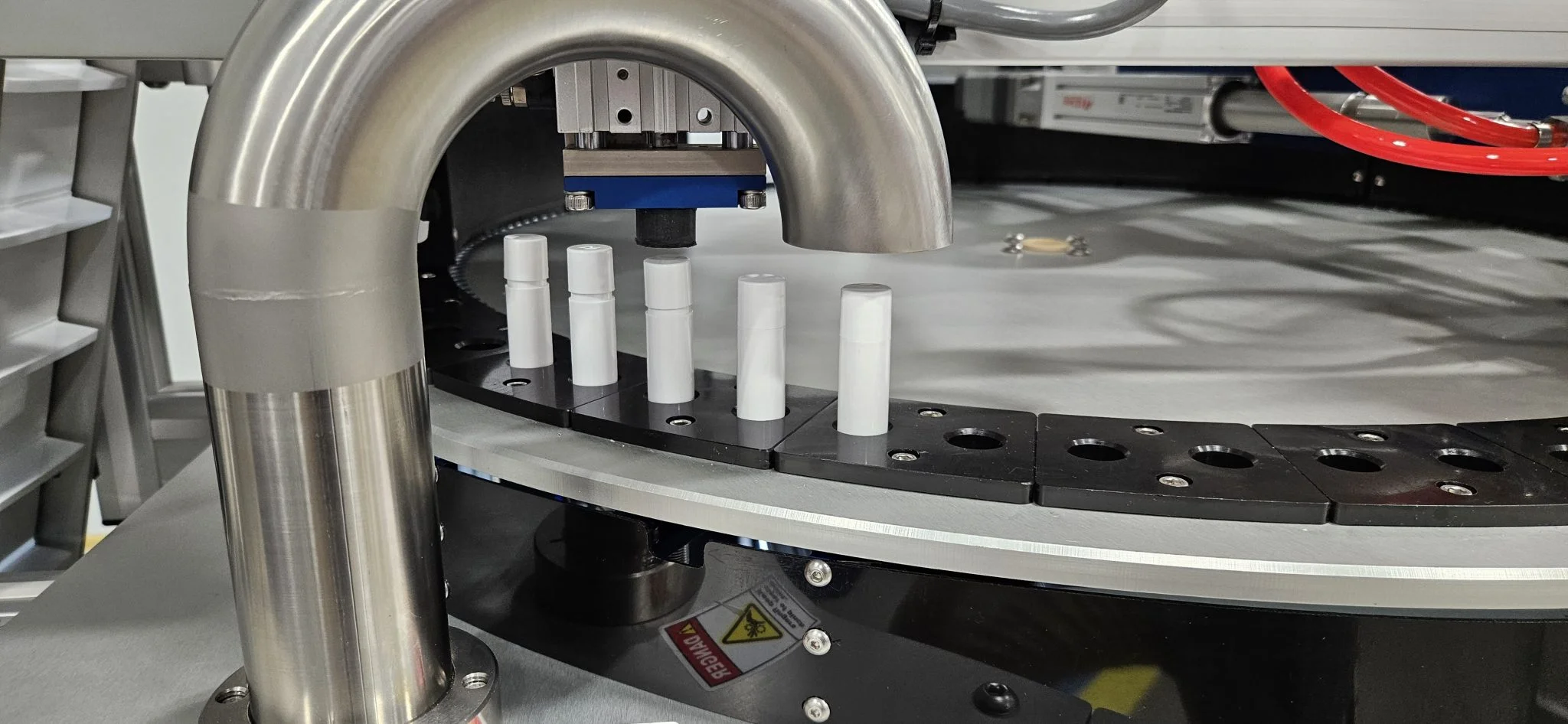

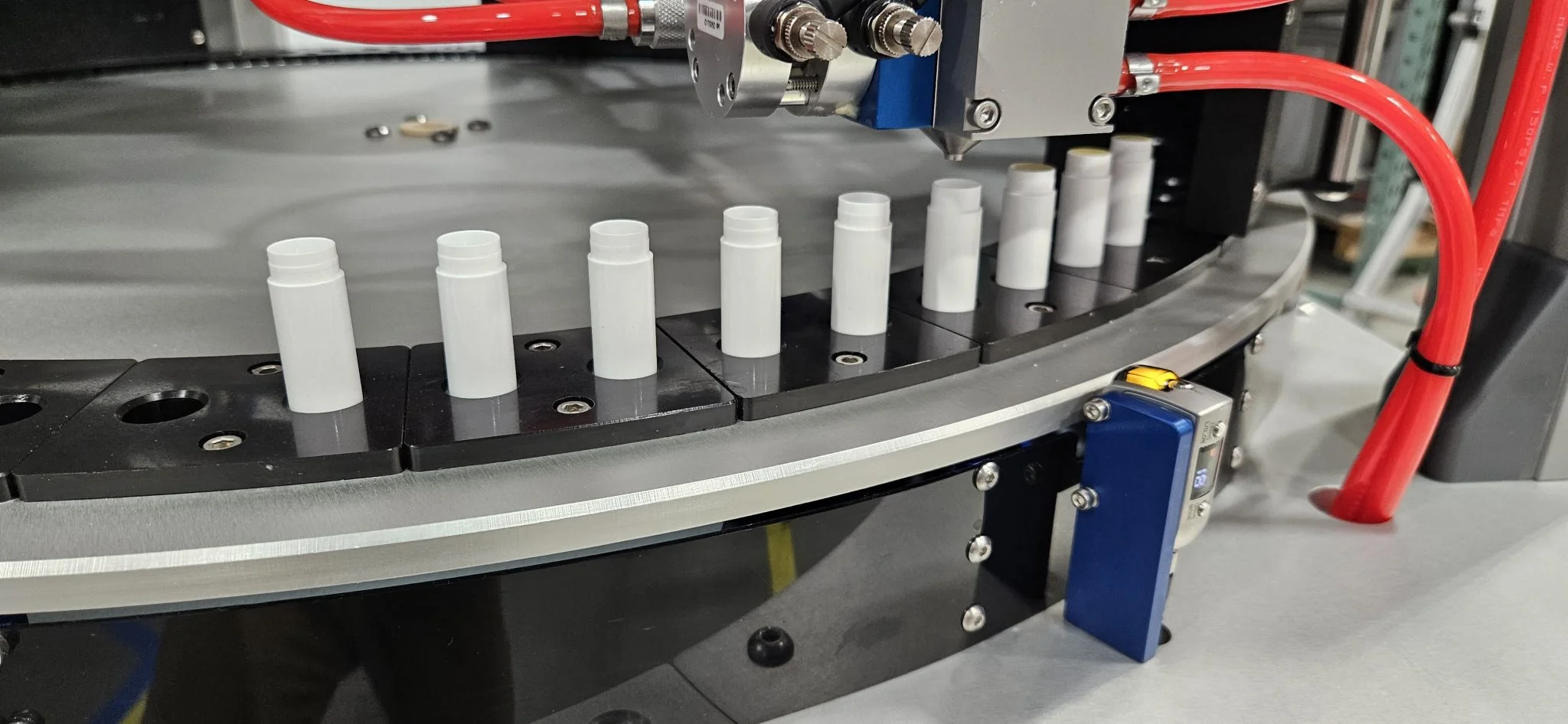

Manual Loading Station – Indexing Wheel

Angled guide for easy loading
Quick change puck mounting system
Puck tooling for .15oz 500 style tubes, including the following:

  • Inpres
  • Federal
  • CCP
  • Sapona

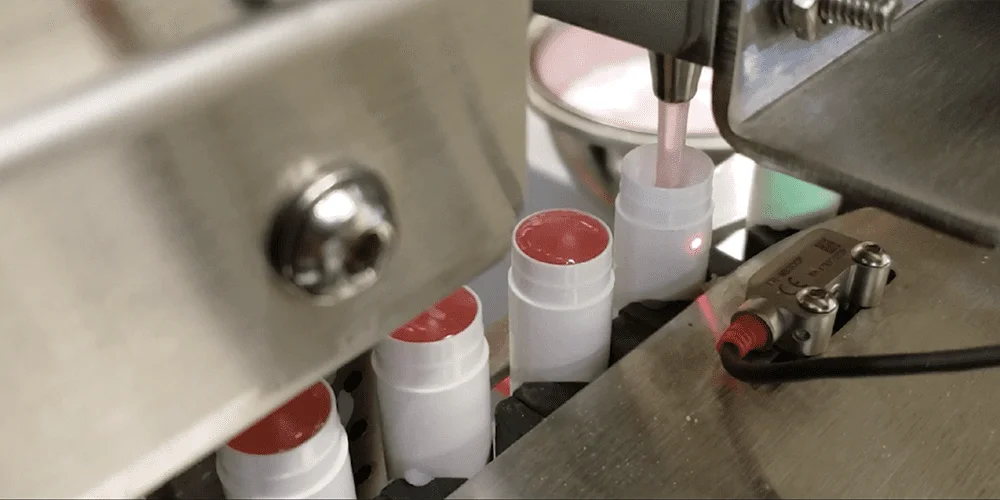

Automatic Filling Station

LB30 Heated product hopper (3 gallon)
LB30 Positive displacement heating filling head
LB60 Heated product hopper (5 gallon)
LB60 Two Positive displacement heating filling head
Touch screen adjustable fill level control (stepper motor)
Pneumatic spool valve for positive shut off
Liquid heating system for product temperature control

6.5K BTU air conditioning cooling unit
Two stage cooling zones
Exclusive soft air-cooling tunnel

Infrared heating unit (or similar)
Height adjustable temperature intensity control

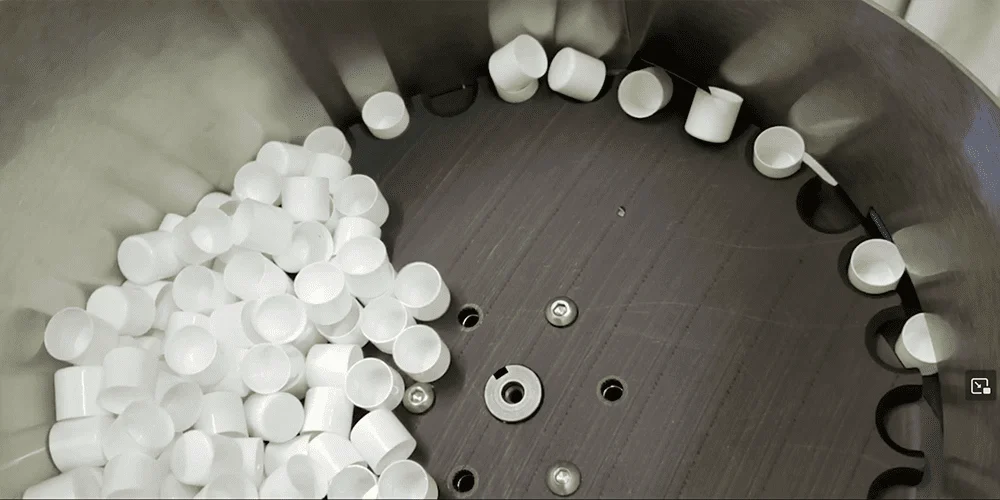

Rotary cap sorter (.15oz 500 style caps)
Gravity cap track (.15oz 500 style caps)
Spring action cap escapement (.15oz 500 style caps)
Cap snap station (.15oz 500 style caps)

LB30 Lip Balm Filler – 30 Per Minute

LB60 Lip Balm Filler – 60 Per Minute
